1. Intro
Stainless Steel Wire Rope 7×19 is a highly flexible wire rope designed for applications requiring smooth bending performance and corrosion resistance. It is commonly used in industrial, architectural, and general-purpose applications

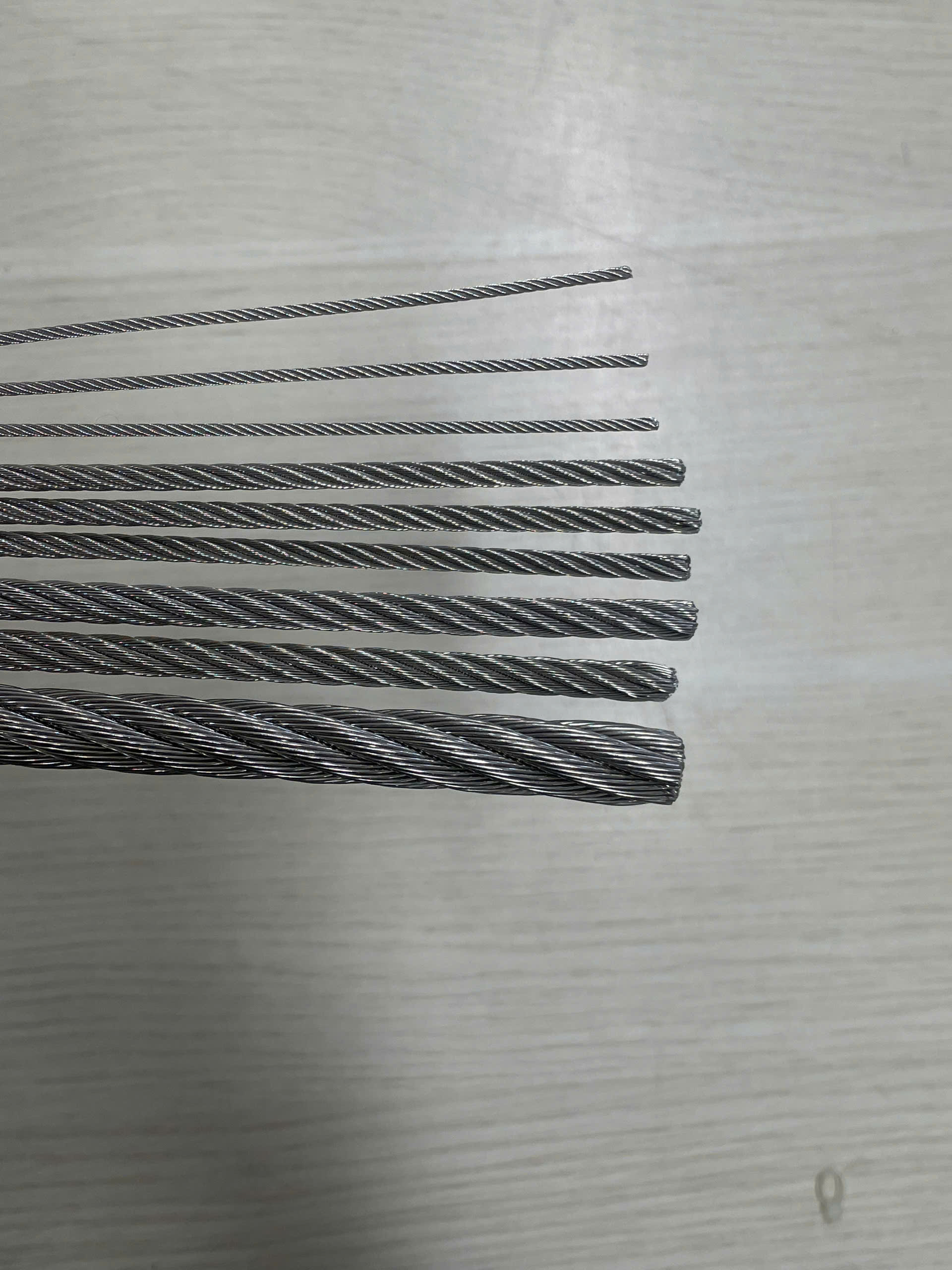

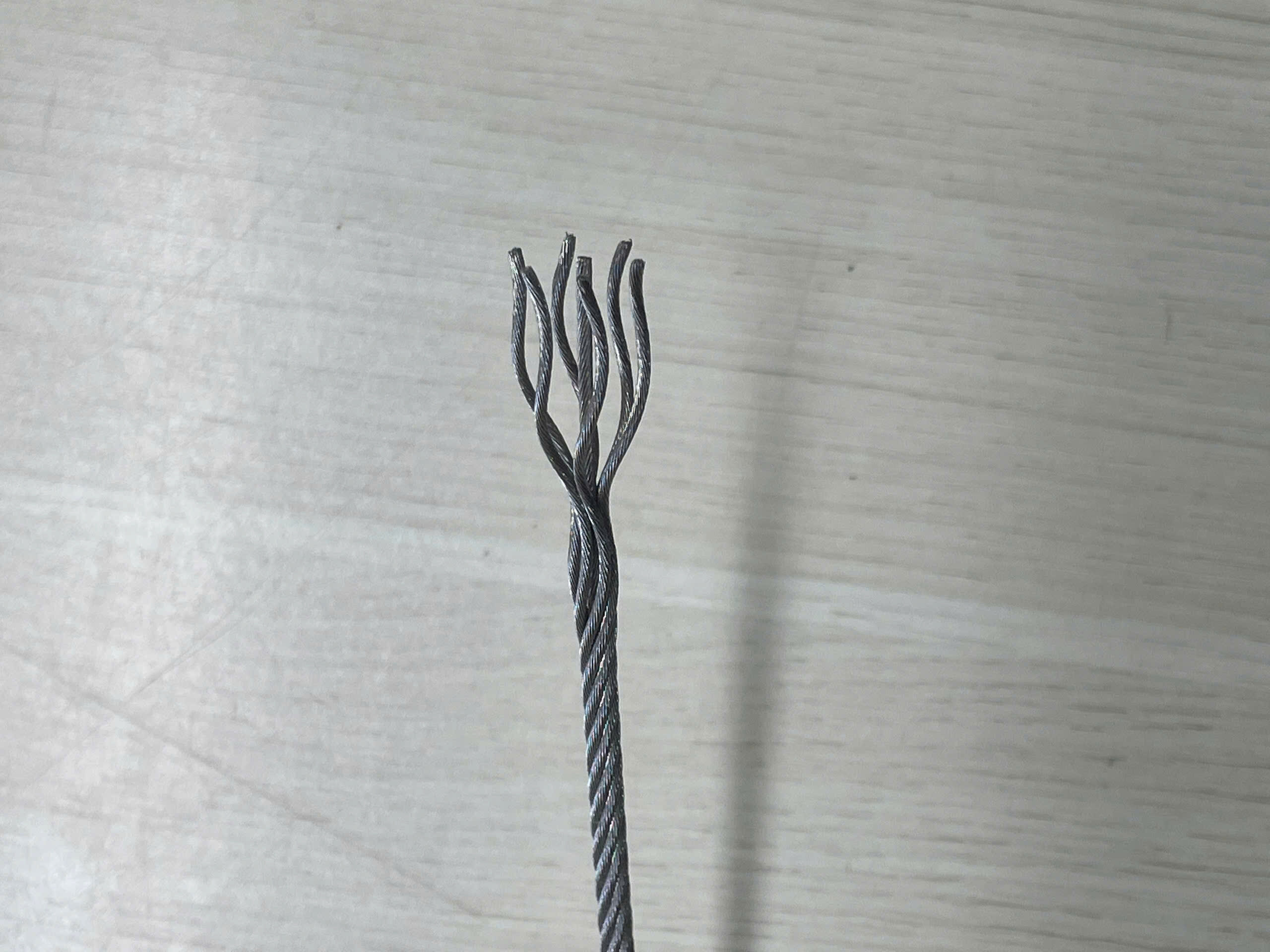

2. Product Image
3. Features
Excellent flexibility
Good corrosion resistance
Smooth and stable construction
Suitable for indoor and outdoor applications
Stable and reliable performance
4. Material / Construction / Diameter Range
| SUS304 | 7 x 19 | 1.20 ~ 16.0 |
| SUS316 | 7 x 19 | 1.20 ~ 16.0 |
5. Applications
Automotive component applications
Balustrade and railing systems
Mesh and fencing applications
General industrial applications
Surface Finish
Bright finish
PVC / PA coated available upon request
6. Technical Specification
| Size (mm) |
Min. Breaking Load (Kgf) |
|
| 304 | 316 | |
| 1,20 | 122 | 87 |
| 1,50 | 192 | 132 |
| 1,60 | 218 | 150 |
| 1,80 | 240 | 186 |
| 1,92 | 272 | 212 |
| 2,00 | 295 | 230 |
| 2,40 | 417 | 330 |
| 2,50 | 460 | 380 |
| 3,00 | 710 | 540 |
| 3,20 | 798 | 608 |
| 3,50 | 870 | 720 |
| 4,00 | 1.089 | 950 |
| 4,20 | 1.285 | 1.014 |
| 4,70 | 1.610 | 1.290 |
| 4,80 | 1.678 | 1.345 |
| 5,00 | 1.820 | 1.490 |
| 5,50 | 2.268 | 1.700 |
| 6,00 | 2.480 | 1.910 |
| 6,40 | 2.903 | 2.140 |
| 7,00 | 3.160 | 2.600 |
| 7,14 | 3.538 | 2.980 |
| 8,00 | 4.082 | 3.400 |
| 9,00 | 4.840 | 4.300 |
| 9,53 | 5.443 | 4.815 |
| 10,00 | 5.970 | 5.310 |
| 11,00 | 7.230 | 6.430 |
| 12,00 | 8.892 | 7.320 |
| 16,00 | 14.730 | 13.350 |
7. Packaging
Standard packaging: wooden spool. Other packaging options available upon customer request.
8. Quality Control
All products are inspected throughout the production process, including:
Diameter inspection
Tensile strength testing
Breaking load testing
Visual and tactile surface inspection
Packaging verification
Customization
Customized specifications and packaging are available according to customer requirements.
