1. Intro
Stainless Steel Wire Rope 1×7 is a stainless steel wire rope designed for reliable performance and corrosion resistance. It is commonly used in control cable, support cable, marine, and general-purpose applications.

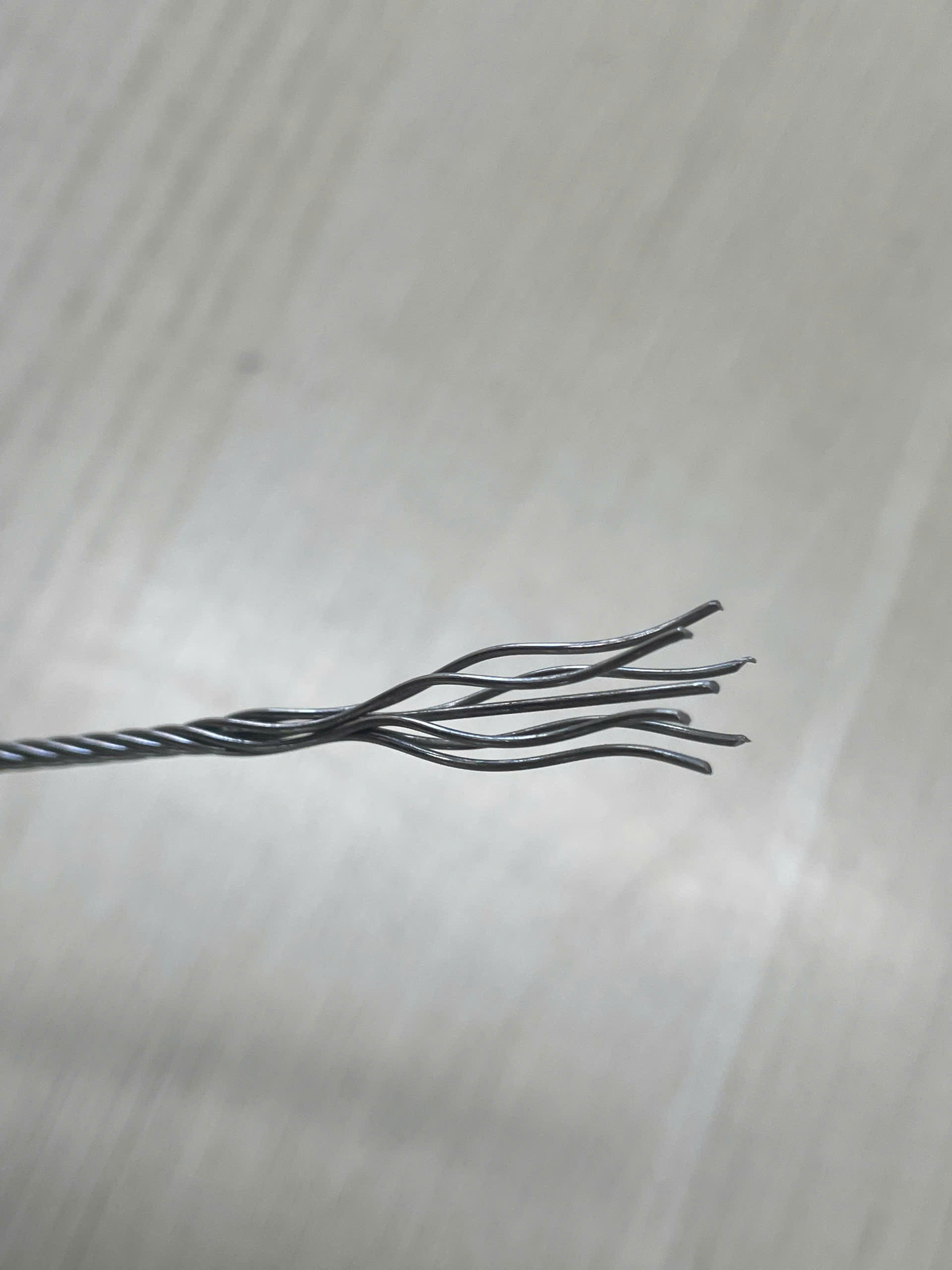

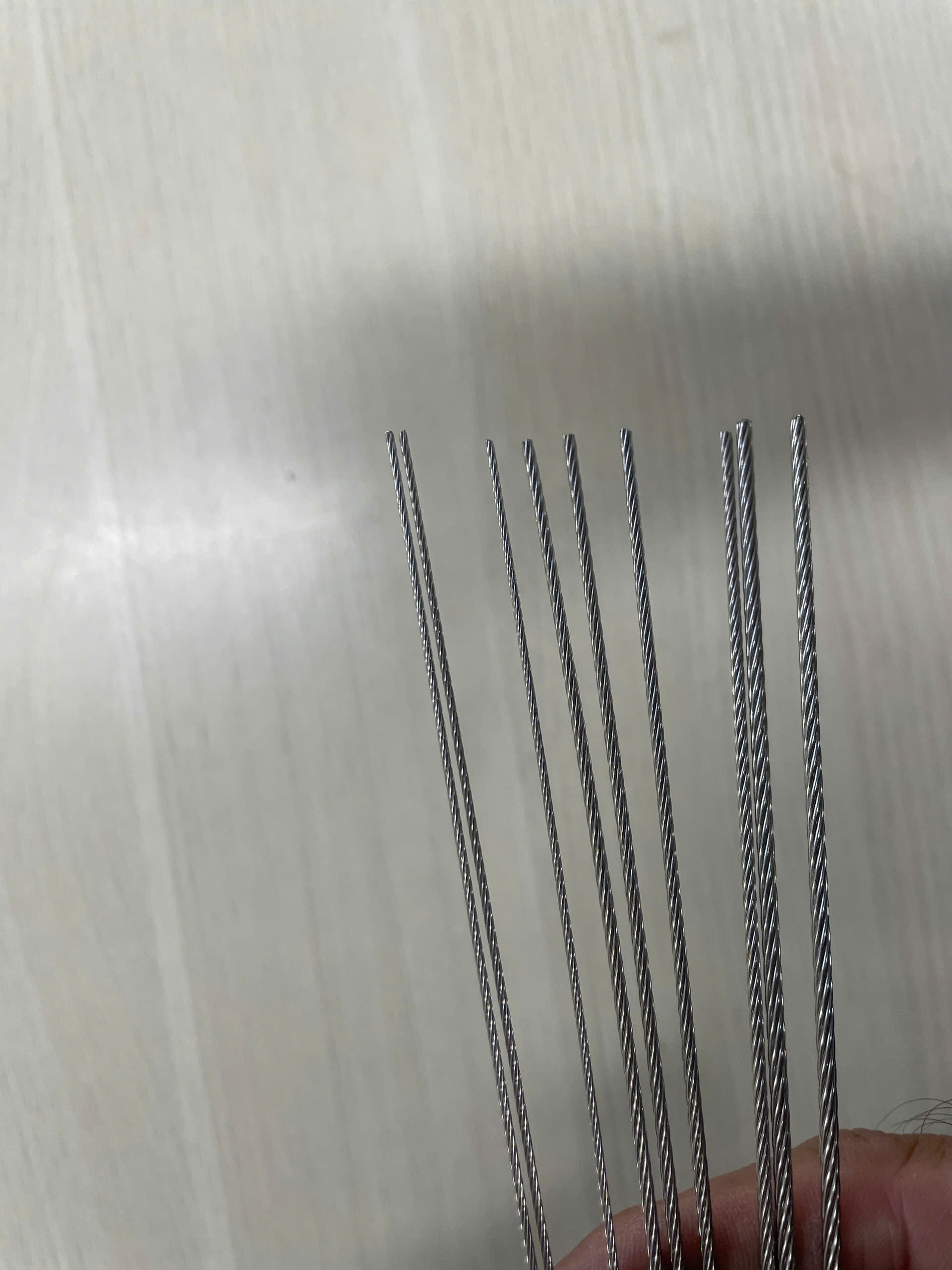

2. Product Image
3. Features
Compact and stable construction
Good corrosion resistance
Smooth surface finish
Suitable for indoor and outdoor applications
Reliable performance for general applications
4. Material / Construction / Diameter Range
| SUS304 | 1 x 7 | 0.54 ~ 3.0 |
| SUS316 | 1 x 7 | 0.54 ~ 3.0 |
5. Applications
Control cable applications
Support cable applications
Marine and outdoor applications
General-purpose applications
Surface Finish
Bright finish
PVC / PA coated available upon request
6. Technical Specification
| Size (mm) |
Min. Breaking Load (Kgf) |
|
| 304 | 316 | |
| 0,54 | 28 | 25 |
| 0,57 | 32 | 29 |
| 0,60 | 35 | 31 |
| 0,70 | 56 | 42 |
| 0,75 | 58 | 52 |
| 0,80 | 63 | 56 |
| 0,90 | 80 | 70 |
| 0,96 | 91 | 78 |
| 1,00 | 99 | 85 |
| 1,05 | 115 | 94 |
| 1,11 | 140 | 105 |
| 1,20 | 143 | 125 |
| 1,25 | 154 | 136 |
| 1,35 | 210 | 158 |
| 1,50 | 221 | 190 |
| 1,60 | 250 | 223 |
| 2,00 | 392 | 348 |
| 2,03 | 411 | 356 |
| 2,10 | 440 | 381 |
| 2,18 | 474 | 410 |
| 2,24 | 500 | 433 |
| 2,40 | 565 | 497 |
| 2,50 | 613 | 544 |
| 3,00 | 882 | 784 |
7. Packaging
Standard packaging: wooden spool. Other packaging options available upon customer request.
8. Quality Control
All products are inspected throughout the production process, including:
Diameter inspection
Tensile strength testing
Breaking load testing
Visual and tactile surface inspection
Packaging verification
Customization
Customized specifications and packaging are available according to customer requirements.
